Taw qhia

Laser CNC Tshuab rau Hlau yog cov cuab yeej ua haujlwm siab ua ke nrog laser txiav, engraving, npav thiab vuam ua haujlwm. Nws txais kev siv tshuab fiber ntau laser, nruab nrog kev ua haujlwm siab laser qhov chaw thiab kev tswj xyuas ntse, thiab tuaj yeem paub txog kev ua haujlwm zoo thiab meej ntawm ntau yam khoom siv hlau.

Qhov zoo

1. Muaj peev xwm txiav
Lub Tshuab Laser CNC rau Hlau muab ntau yam kev xaiv fais fab (500W, 1000W, 2000W, 3000W, 4000W, 6000W), uas tuaj yeem hloov kho raws li kev ua haujlwm sib txawv. Qhov tsawg kawg nkaus txoj kev dav tuaj yeem ncav cuag ± 0.1mm, thiab qhov tseeb ntawm qhov rov ua haujlwm yog ± 0.05mm, kom ntseeg tau tias muaj kev txiav txim siab zoo.

2. Muaj zog adaptability
Lub Laser CNC Tshuab rau Hlau muab ntau qhov chaw ua haujlwm xaiv (1300x2500mm, 1500x3000mm, 2000x4000mm, 2000x6000mm), uas yog tsim rau kev ua haujlwm ntawm ntau qhov sib txawv. Nruab nrog fiber ntau lasers, thiab Raycus thiab MAX laser qhov chaw tau muab, thiab cov chaw tsim nyog laser tuaj yeem xaiv raws li tus neeg siv khoom yuav tsum tau ua.

3. Cov nyhuv txiav zoo
Lub wavelength ntawm fiber ntau laser yog 1080 nanometers, uas yuav pab txhim kho cov kev txiav zoo ntawm cov ntaub ntawv hlau, txo qhov kub-tshem tawm tsam, thiab txiav cov npoo nrog siab precision. Siv Swiss WSX los yog Raytools txiav lub taub hau, nrog rau phau ntawv qhia kev ua haujlwm, kom muaj kev ruaj ntseg thiab meej thaum txiav.

4. Ua kom txias txias thiab ntse tswj qhov system
Lub Laser CNC Tshuab rau Hlau yog nruab nrog lub chiller tsim nyog rau lub laser qhov chaw, uas zoo txo cov kev khiav hauj lwm kub ntawm lub laser thiab lwm yam tseem ceeb Cheebtsam, prolongs lub neej kev pab cuam ntawm cov cuab yeej, thiab xyuas kom meej cov hauj lwm zoo thiab ruaj khov. Lub Cypcut tswj system muab kev txiav txoj kev npaj, kev ua haujlwm yooj yim, thiab lub zog muaj zog, uas tuaj yeem ua tiav cov khoom siv tau zoo thiab siv tau.

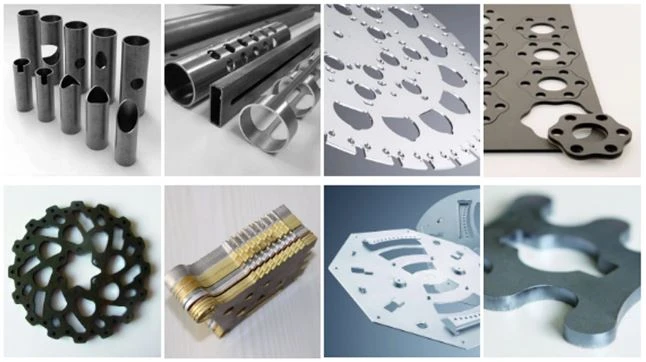

Daim ntawv thov

1. Hlau txiav
Siv los txiav cov vaj tsev thiab qhov chaw ntawm cov khoom siv hauv tsev xws li lub tub yees thiab lub tshuab ntxhua khaub ncaws.

2. Hlau engraving thiab cim
Siv los kos cov hlau nto xws li xov tooj ntawm tes, khoos phis tawj, khoom siv hluav taws xob, thiab kos duab tus kheej tsim thiab cov ntawv nyeem ntawm cov hniav nyiaj hniav kub.

3. Hlau qhov ua
Laum qhov nyob rau hauv cov hlau structural qhov chaw ntawm aircraft rau kev sib dhos thiab kho ntawm lwm qhov chaw. Cov txheej txheem me me los ntawm qhov los yog qhov sib koom ua ke ntawm cov vaj tsev hlau kom yooj yim rau kev teeb tsa ntawm sensors, connectors, thiab lwm yam.

4. Hlau vuam
Siv los vuam hlau seams ntawm lub tsheb lub cev nyob rau hauv lub tsheb kev lag luam, thiab rau weld high-precision hlau qhov chaw nyob rau hauv precision kho mob cov cuab yeej los xyuas kom meej stability thiab kev ruaj ntseg ntawm qhov chaw.

5. Pwm ua
Siv los tsim cov khoom hlau hauv kev txhaj tshuaj pwm lossis tuag-casting pwm.

Tshuab Configuration

Hom qauv	FLDJ1325F	FLDJ1530F	FLDJ1540F	FLDJ1560F
Lub npe ntawm cov khoom	Laser Cnc Tshuab Rau Hlau
Laser Media	Fiber Laser
Hwj chim	500w/1000w/2000w/3000w/4000w/6000w
Wave Length	10 80nm
Min.Route Dav	± 0.1 hli
Repostion raug	± 0.05 hli
Txiav cheeb tsam	1300 x 2500 mm	1500x3000mm	15000x4000mm	1500x6000mm
Aiming Positioning	Liab Dot
Kev xav tau voltage	220V lossis 380V / 50 ~ 60Hz
Txiav taub hau	Standard Configured Los ntawm WSX Brand Manual Focusing.Kawm muaj Raytools los ntawm Switzerland
Laser Source	Standard Raycus / MAX 2000W (Yeem: 1000w / 3000w / 4000w / 6000w)
Daim ntawv qhia kev yuav khoom	1) Carbon Steel Max Thickness Tsawg dua lossis sib npaug li 6 hli, Stainless Hlau Tsawg dua lossis sib npaug li 3 hli Thov Xaiv Rau 500w Laser Source; Carbon Steel Max Thickness Tsawg dua los yog sib npaug li 12 hli, Stainless Hlau Tsawg dua los yog sib npaug rau 8 hli, Aluminium Tsawg dua los yog sib npaug rau 4 hli, tooj dag tsawg dua lossis sib npaug li 3 hli Thov xaiv rau 1000w Laser Source 2). Xws li qhov chaw txiav yog tias koj cov ntawv hlau loj yuav tsum yog 1000x2000mm rau Piv txwv li, koj tuaj yeem xaiv rau FLDJ1325F lub rooj ua haujlwm: 1300x2500mm lossis daim ntawv loj yog 1420x2500mm tuaj yeem xaiv rau FLDJ1530F lub rooj ua haujlwm -1500x3000mm txiav cheeb tsam, thiab lwm yam. 3). Yog tias koj cov ntaub ntawv thickness tshaj li saum toj no cov ntaub ntawv thov sab laj rau peb txog FLDJ1530F series

Tshuab txaj Structure

Taiwan HIWIN Linear Rail thiab Thaiv

Nyiv YASKAWA Servo System

WSX domestic hom txiav taub hau

Raycus laser qhov chaw

Qhov zoo tshaj plaws laser qhov chaw ua nyob rau hauv Suav teb. siab zog conversion tus nqi. Lifespan yog 100000 teev

(IPG yog xaiv tau)

CYPCUT Control System

Qhov kev tswj hwm zoo tshaj plaws hauv fiber ntau laser tshuab kev lag luam

Chiller Tshuab

Nyiv Shimpo reducer

product-1-1

Ntim thiab xa cov Laser Cnc Tshuab Rau Hlau

1. Lub tshuab ntim zaj duab xis tag nrho: zam txhua qhov kev puas tsuaj uas yuav tshwm sim thaum xa khoom.

2. Ntoo lub thawv rau hauv qab ntawm lub qhov (socket) hlau kom yooj yim tuav.

product-1-1

Peb lub Hoobkas

product-1-1

Daim ntawv pov thawj

FAQ

Q: Koj puas muaj daim ntawv CE thiab lwm yam ntaub ntawv rau kev lis kev cai?

A: Yog, peb muaj CE, Muab kev pabcuam rau koj ib-nres.Thaum xub thawj peb yuav qhia koj thiab tom qab xa khoom peb yuav muab rau koj CE / Daim ntawv teev npe / Daim Ntawv Pov Thawj Ua Lag Luam / Muag daim ntawv cog lus rau kev lis kev cai.

Q: Vim li cas tus nqi tshuab tsis suav nrog fiber ntau?

A: Cov neeg siv khoom sib txawv, cov kev xav tau sib txawv, thiab ntau lub zog laser sib txawv tuaj yeem xaiv tau, yog li peb teev tus nqi tsis suav nrog cov khoom siv fiber ntau.

Q: Yuav ua li cas txog warranty?

A: 2 xyoo lav zoo, lub tshuab nrog cov khoom tseem ceeb (tsis suav nrog cov khoom siv) yuav tsum tau hloov pauv dawb (qee qhov chaw yuav khaws cia) thaum muaj teeb meem thaum lub sijhawm lav.

Q: Koj puas muaj kev txhawb nqa tom qab muag?

A: Yog, peb zoo siab los muab cov lus qhia thiab peb kuj muaj cov kws tshaj lij uas muaj nyob thoob plaws ntiaj teb, Peb xav tau koj lub tshuab ua haujlwm txhawm rau txhawm rau ua kom koj lub lag luam khiav lag luam.

Warranty thiab kev pabcuam: fiber ntau laser cutter nrog zoo zoo.

Warranty:

1. Ob xyoos warranty rau lub tshuab. English technical to door service.

2. Lus Askiv phau ntawv thiab Video CD rau tshuab siv thiab tu.Peb muaj kev cob qhia dawb hauv peb lub Hoobkas, txais tos tuaj xyuas thiab kawm ntxiv txog peb cov tshuab.

3. Free accessories: Software, phau ntawv, phau ntawv, cd yeeb yaj duab, USBcontrol .

Kev pab cuam tom qab muag:

Peb muaj cov kws tshaj lij thiab pab neeg ua haujlwm tom qab muag. Peb txhawb nqa qhov rooj rau qhov rooj tom qab kev muag khoom. Yuav kom daws tau cov teeb meem ntawm cov neeg siv khoom zoo thiab pab cov neeg siv khoom siv lub tshuab zoo dua, peb yuav ua kev ntsuam xyuas kev txawj ntse ntawm peb pab pawg tom qab muag txhua xyoo.

Tom qab-muag kev pab cuam Star engineers (ib feem qhia)
